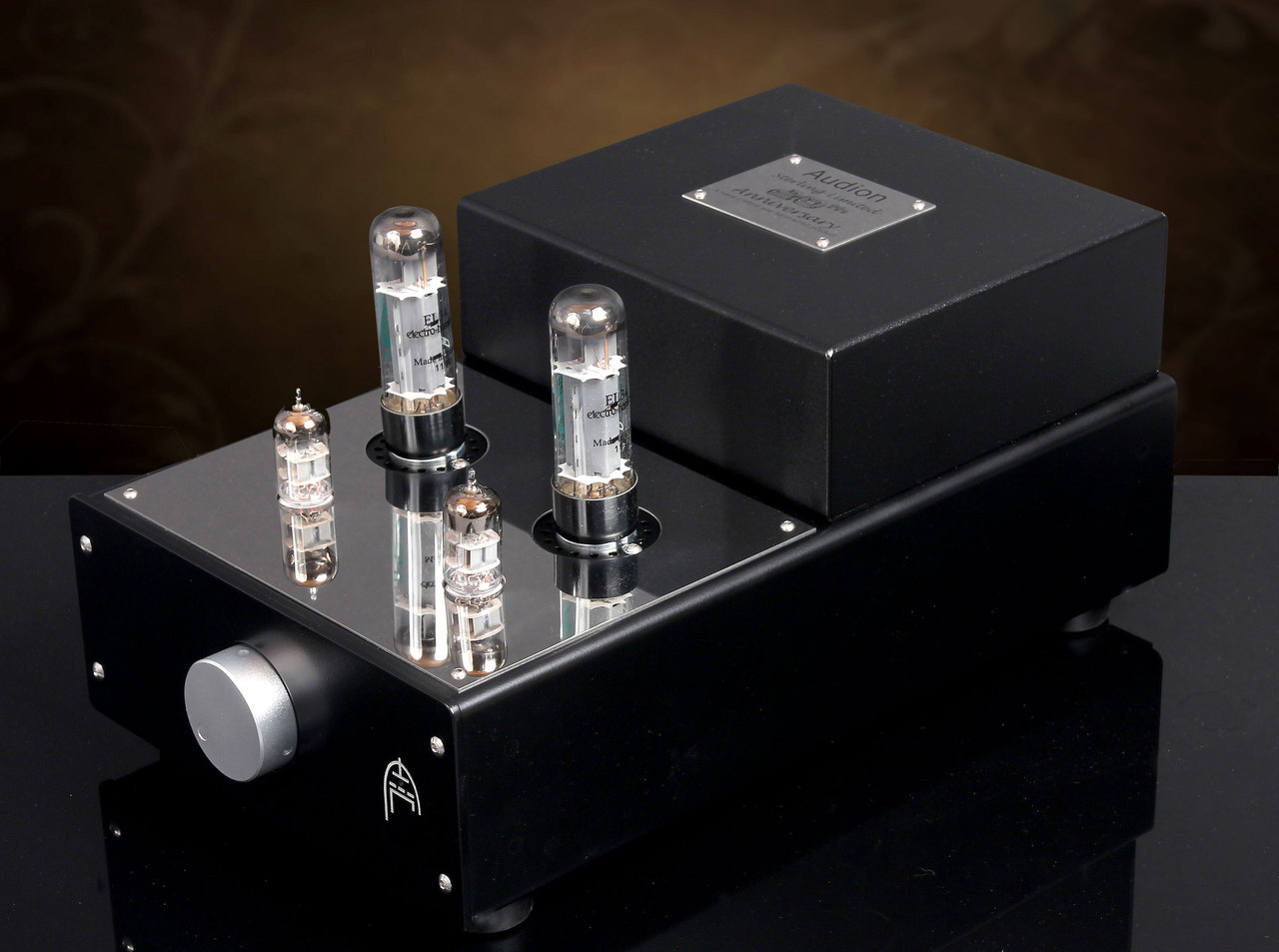

This Audion amp is hard wired point to point using higher grade components and larger, hand-built, Audion wound output transformers (EI96).
The Audion Stering 34 is auto biased and will take almost any EL34 (supplied with JJ tubes) delivers a conservative 12 CLEAN watts into 8 ohms. Has the power of competitors boasting 24-30W.
This next level combination makes for smooth transients, good signal handling and tight response curves. There is an audible difference with the Audion Anniversary products, due to the larger transformers and better grade components over the Mk1 printed circuit board models. This pentode based EL34 stereo amp uses a small amount of feedback in the design.
The Audion Sterling 34 amplifier is a very conservative rated power amplifier and musical straight out of the box. The Sterling Anniversary is a good entry level hard wired (Air Wired©) Class A power amplifier, sonically very airy with good response. It sounds far better than its price suggests. In most cases competing with products 1.5 - 2x its price point.>
This Audion Sterling is suited for use with loudspeakers of 89db or better efficiency. The Audion Sterling is a good entry level hard wired Class A power amplifier at a very appealing price. 2 years.
Warranty: Tubes 6 months.
Power: 2 x 12 Watts Class A into 8 Ohms at 120V AC
Load: 8 Ohm Nominal
Distortion @ 1 Watt: Frequency Response: 14 to >40KHz ±1 db
Sensitivity: Variable >200mV Full output
Noise: < (CCIR) – 85 db
Consumption: 140 Watts
Tubes: 2 x EL34, 2 x 6H1N
Size - 16.5in deep, 9in wide and 7.4in tall - Less tubes
Weight 31 lbs
Fuses - Power 4A / 120V HT 1A / 120V
