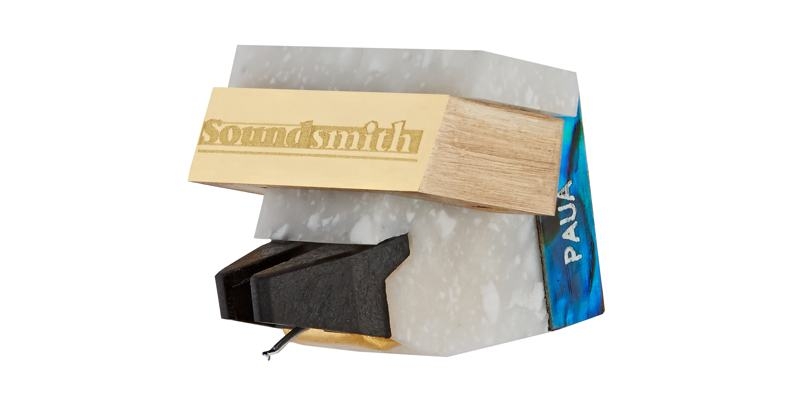

SoundSmith Paua Mk II Low-Output Cartridge
Now at True Audiophile
Trying to find a solid line of cartridges that allow an audiophile to reach a higher level of performance without the price penalty has been an incredible challenge. After years of listening to just about every line of cartridges we are confident SoundSmith fulfills that criteria. --TA
"If I had to live with just one cartridge, I would choose the Paua, because it offers more with a wider range of the recordings in my collection. As it stands, the cartridge will be happily employed spinning records in the future, as we have added it to our reference fleet." - Jeff Dorgay, TONE Magazine
The NEW Paua MKII: adorned with sea shell to remind us of the beauty of the sounds of the world all around us. Nature healing nature.
The Paua is one of Soundsmith's most highly regarded top of the line low output cartridges. It has won numerous accolades and praise from users and reviewers around the word, including an “Editor’s Choice Award” in 2015 from TAS. Now we introduce the new Paua MKII, employing a newly developed Aluminum alloy used to fashion the MKII's cantilever into a precision acoustic and mechanical lever. It features stiffness in the ranges required, while providing critical damping in other sections of the acoustic spectrum. The reult is an even better Paua, a cartridge that gets raves from its owners, and can be fully rebuilt many times for $550 - a fraction of its original cost - as with all Soundsmith cartridges - 20% or less.
Featuring ultra-low internal moving mass, a specialized telescoping newly developed alloy cantilever and highly polished low mass nude Contact Line stylus, the Paua MKII will add a unique quality of warmth and smoothness to any analog system without leaving behind all the delicate musical details you want and need to hear. The Paua MKII reaches new heights of stylus control and performance, as is confirmed by its incredibly high channel separation figures.
SoundSmith have accomplished a work of art with the Paua MKII design, resulting in an unparalleled and sublime performance.
Also available in dual-coil mono, as with all Soundsmith Fixed Coil designs.
Cartridge Type: Fixed Coil
Stylus Type: Contact Line
Output Voltage: .4 mV
Available As Dual Coil Mono: Yes
Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: Nude Contact Line SELECTED
Cantilever: Telescoping Aluminum Alloy
Recommended tracking force: 1.7 to 1.9 grams
Effective tip mass: 0.30 mg
Compliance: 10 μm/mN (low compliance)
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel separation (stereo only): 1000 Hz >34 dB 50-15,000 >25 dB
Channel difference: <0.5 dB (Stereo), <1.0 dB (Mono)
Output Voltage: ≥0.4 mV
DC Resistance (DCR): 10-11 Ω each channel
Coil: 2.75 mH each channel
Suggested Preamp Gain: 58-64 dB
Soundsmith Recommends: MCP2 Variable Loading Preamp
Cartridge weight: 10.25 grams
Loading: ≥ 470 Ω
