Audion Select NEW TVC Level Pre-Amplifier with 6dB of Gain

$3,485.00
Current stock: 0
Select Option Required

Audion Select All New TVC is Silent yet offers 6dB of gain. Completely off the Grid, all the dynamics.

Exclusively Imported by True Audiophile

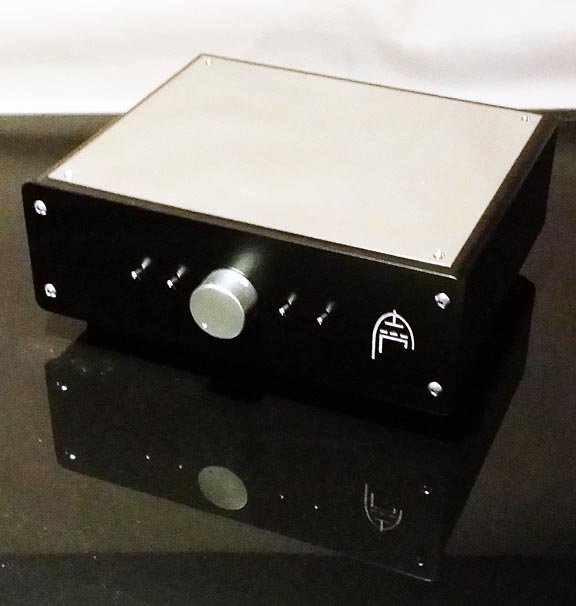

Audion Select TVC1 transformer based volume control Passive Line level  pre-amplifier is hand built with quality compononents. The chassis is black powder coated aluminum as is the base. The top plate is mirror finished stainless steel.


The Audion Select TVC1 passive line level pre-amplifier is a passive transformer based device with gain. Built with 5 line level inputs switched from the front panel, 2 line outputs and a direct un-switched unattenuated tape output. It is hard wired with a Seidan 23 way switch fitted and with a ground loop lift switch designed to stop any ground loops.. Being a passive pre-amplifier it will not add hum or tube noise to your current equipment. It also has a switch on the rear to offer an additional 6db of gain, effectively "A wire with gain".


The black aluminium chassis is designed to match cosmetically to the rest of the Audion range in looks similar to the Audion Quattro pre-amp and sound quality, and having the same size and shape will fit in with other Audion equipment. It has been designed for users with stereo or monoblock amplifiers to add more inputs and volume control to their setup.


Audion offers a 23 way transformer steps and / or silver internal wiring, and with the option of WBT Nextgen RCA sockets.


Being a passive stage it will not alter your soundstage, but at the same time it will allow micro details to come to the fore . In use it is absolutely invisible, with extreme depth even at very low levels. It brings recordings to life and places you directly in front of the performance
The name "Audion Select" has been given as it is mainly a selector and in the double entendre stakes it is also a select product..


Amplifier matching


This Select TVC1 passive Line level pre-amplifier is a great match with our power amplifiers. Ideally matched with either of our ranges of Electron or Proton cables. This is a very good premium Transformer volume controlled passive pre-amplifier with the additional benefit of 6db gain. It can be used as a volume control / channel selector for any amplifier other than ours that does not have a volume control.

Quality both inside and out

he TVC1's transformer is quite a special trasformer using micro winding techniques from our heanium gated tensioners which allow micro accurate tensioning. This allows the TVC1 pre-amp to be extremely fast and capable of handling the most intricate and detailed musical passages. Outstanding performance, lightning quick response curves and terrific transparency.


The TVC1 Select has 5 line level inputs as standard, 3 outputs and has a ground lift switch and ground binding post floated through the internal ground lift at the rear to assist in resolving grounding issues by floating the ground internally above mains ground.

The following is the step ratio from Position 1 to 23 with the +6db switch active.


Step 1 = -42db, - 38db -34db -32 db the -2db steps to 0 and then +3db and +6db at step 23 with +6db switch on.


Designed to work well below 10hz and above 100Khz. The output is at 50kohm so ideally suited for our power amp range. In fact measured at -1db down we achieved 9hz to 36khz.

[[[specification_start]]]

Step ratio from Position 1 to 23 with the +6db switch active.

Step 1 = -42db, - 38db -34db -32 db the -2db steps to 0 and then +3db and +6db at step 23 with +6db switch on.
Designed to work well below 10hz and above 100Khz.

The output is at 50kohm so ideally suited for our power amp range. In fact measured at -1db down we achieved 9hz to 36khz.

[[[specification_end]]]

Audion ALL NEW TVC Level Pre-Amplifier with 6dB of Gain

There are no product reviews

Condition: New
Availability: Most models direct from factory. Allow 10 days or inquire for specific time.
Width: 20.00
Height: 14.00
Depth: 20.00
Shipping: Free Shipping
